Fibermesh® Stonewool Insulation Blanket
Bradford Fibermesh is a lightweight, stitched-mesh non-combustible Stonewool bulk insulation blankets for general-purpose industrial applications on process equipment, vessels, tanks, ductwork and large-diameter piping. Available in two medium-density grades, Fibermesh 450 and Fibermesh 650, the blankets provide reliable thermal insulation, acoustic absorption and fire performance, with galvanised or stainless steel wire mesh stitched to one face for strength and easy handling.
Features and Benefits
Bradford Fibermesh insulation blankets are lightweight, durable and straightforward to install. The stitched wire mesh adds strength and flexibility so the blanket forms neatly to equipment and can be fixed with lacing wire, often without additional banding. Performance is not adversely affected by contact with water, and the Stonewool fibres are biosoluble and safe to handle. Non-combustible fibres and mesh support use in fire-critical environments, and recycled content up to 40% supports sustainability goals.
Key Features
Thermal, acoustic & fire performance
Stonewool that insulates, absorbs sound, and provides fire resistance
High temperature suitability
Unfaced blankets can withstand temperatures up to 650°C
Durable
Stitched galvanised or stainless steel mesh adds strength and resists handling damage
Easy to install
Lightweight, simple to cut, shape, and fit around equipment
Fibermesh Range
Bradford Fibermesh 450 Unfaced Blanket
Medium-density Stonewool blanket stitched on one side to galvanised or stainless steel wire mesh. A general-purpose option for process equipment where dependable thermal and acoustic performance is required.
Bradford Fibermesh 650 Unfaced Blanket
Medium-density Stonewool blanket stitched on one side to galvanised or stainless steel wire mesh. Specified where higher service temperatures or added robustness are required during installation and operation.
Technical Specifications
Fibermesh
| Product | THICKNESS (mm) | DENSITY (kg/m3) | DIMENSIONS | PIECES PER PACK | m2 PER PACK | GALVANISED PRODUCT CODE | STAINLESS STEEL PRODUCT CODE |
Fibermesh | 50 | 80 | 5m x 600mm | 1 | 3.0 | 114145 | 114160 |
| 75 | 80 | 3000mm x 600mm | 1 | 1.8 | 114146 | 114161 | |
| 50 | 100 | 5m x 600mm | 1 | 3.0 | 114149 | 114164 | |
| 75 | 100 | 3000mm x 600mm | 1 | 1.8 | 114150 | 114165 |

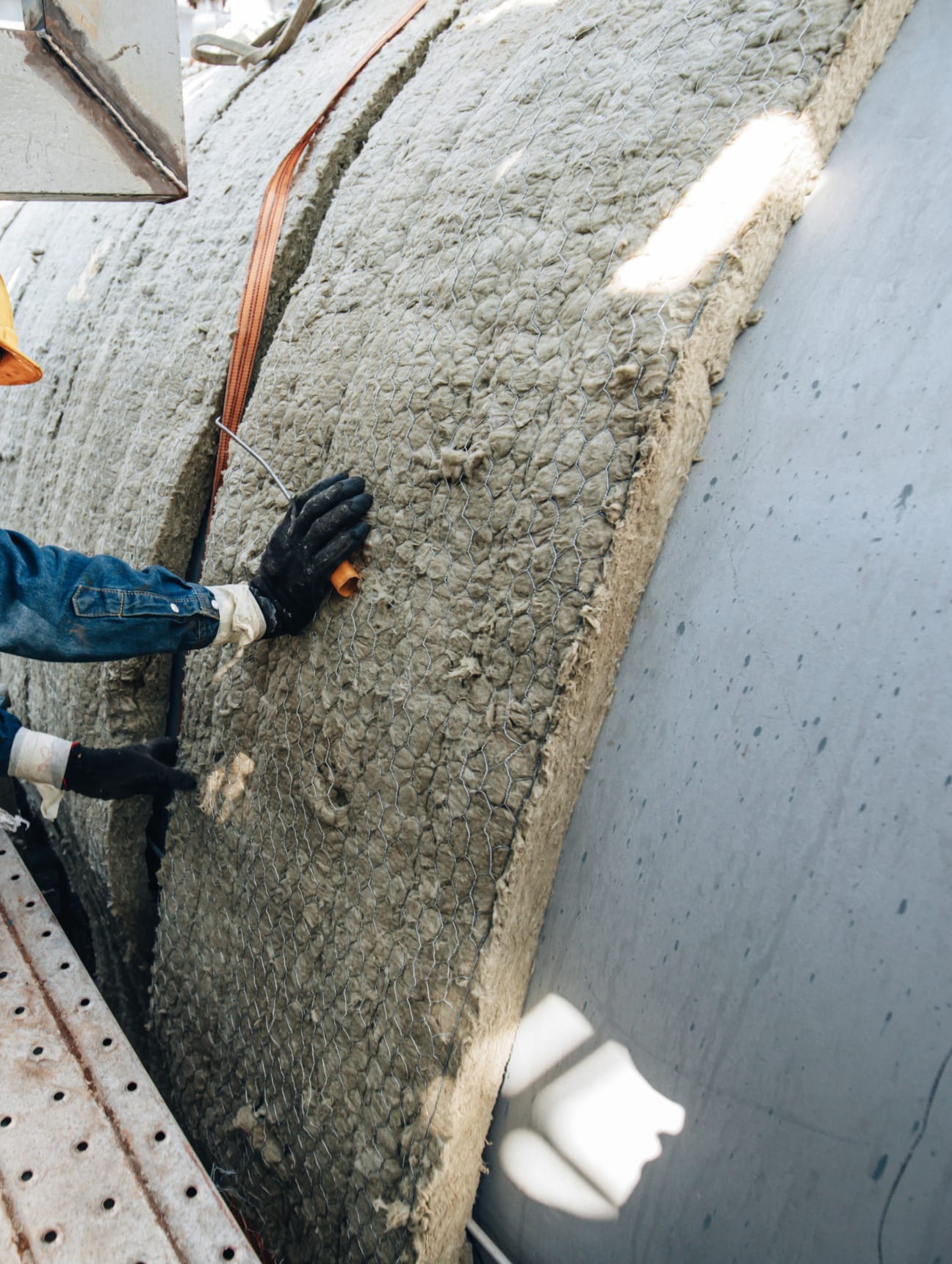

Bradford Fibermesh insulation is widely used in industrial insulation for process temperature control, energy conservation, condensation prevention, acoustic absorption treatment, and personnel protection around plant and equipment. The mesh facing provides additional strength and flexibility, allowing the product to form and hold form around process equipment, ductwork, and large diameter piping.
Applications include:
- Boilers
- Heat exchangers
- Reactors
- Ovens
- Kilns
- Autoclaves
- Large diameter piping
Performance Guaranteed
Bradford 90 Years
Bradford has been trusted for over 90 years, with products engineered to deliver superior performance in insulation and ventilation systems.
FBS-1 Mineral Wool
FBS-1 Mineral Wool products re classified as Non-Hazardous according to the Globally Harmonised System (GHS) and Safe Work Australia.
