SpacerX Roof Spacer System
Bradford SpacerX Roof Spacer System is a patented roof spacer designed for concealed-fixed metal roof applications. Acting as a compact roof raiser, it elevates the cladding above the framing so roof blankets remain in position and maintain their nominal thickness, supporting the specified total roof system R-Value. The system installs with roof clips, fixed directly to the framing using three screws per assembly. Bradford SpacerX is available in four heights (40, 60, 80 and 120 mm) to suit Bradford Anticon® blankets and contribute to BCA-compliant performance. Suitable for non-cyclonic projects only.
Features and Benefits

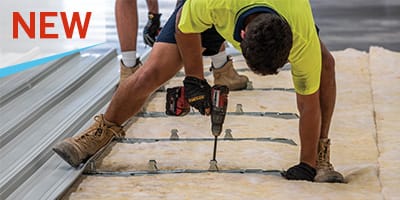

Bradford SpacerX Roof Spacer System is engineered for efficient transport, easy handling on-site, and fast installation. Start Blocks provide quick and precise alignment, while overlapping self-aligning bars remove the need for additional clipping or locking. Each clip-and-spacer assembly secures to the roof framing with three screws, guided by pre-punched vertical centre holes for accurate drilling.
Key Features
Quick to install
Three-screw clip-and-spacer fixing to roof framing
Consistent alignment
Start Blocks and overlapping self-aligning bars keep runs straight with no clipping or locking required
Versatile
Four heights suit common blanket thicknesses for concealed-fix roofing
Efficient to transport
Lightweight, compact packs for efficient handling to the roof
SpacerX Roof Spacer System Range
Bradford SpacerX Roof Spacer System is available as bars and Start Blocks in four heights (40, 60, 80 and 120 mm) to suit common blanket insulation thicknesses. Each bar measures 700 mm in length.
Design notes
- Suitable for steel roof framing only
- Lightweight, compact packs with no cardboard packaging waste
SpacerX Bars
- 700 mm long, supplied in packs and pallets for efficient handling
- Fixed with three screws per bar (screws not included; use Class 3 or 4 fasteners in accordance with roof cladding manufacturer requirements)
SpacerX Start Blocks
- One Start Block required at the beginning of each run
- Fixed with two tek screws (e.g. 12-14 — 3032 mm)
Technical Specifications
SpacerX Roof Spacer System
| APPLICATION | SPACER/BRACKET HEIGHT | TO SUIT ROOFING BLANKET | LENGTH (mm) | QTY PER CARTON | PRODUCT CODE |
Non-Cyclonic | 40 | Anticon 60 | 700 | 10 | 176897 |
| 60 | Anticon 80 | 700 | 10 | 176898 | |
| 80 | Anticon 100/100HP/110 | 700 | 10 | 176899 | |
| 120 | Anticon 130/140/145 | 700 | 10 | 176900 |
SpacerX Start Blocks
| BLOCK HEIGHT (mm) | QTY PER CARTON | PRODUCT CODE |
| 40 | 10 | 177185 |
| 60 | 10 | 176898 |
| 80 | 10 | 176899 |
| 120 | 10 | 176900 |
Bradford SpacerX Roof Spacer System is designed for use on concealed-fixed (clip) metal roofs in commercial and industrial buildings where insulation blankets are specified. By raising the cladding above the framing, SpacerX helps insulation recover to its full thickness and contributes to achieving BCA total roof system R-Values.
Applications include:
- Commercial and industrial purlin roofs with concealed-fixed profiles
- Projects in non-cyclonic regions only, subject to structural engineer verification of roof framing capacities and load combinations
- Installations requiring accurate alignment with Start Blocks and self-aligning bars, without the need for clipping or locking
Compatible clip roofing profiles include:
- Apex Apdeck 700
- Fielders KingKlip®
- Lysaght Klip Lok 700 hi-strength®
- Metroll Metlok® 700
- Revolution Roofing® Revklip 700
- Stramit Speed Deck Ultra®
Compatibility should always be confirmed with the roof cladding manufacturer.
