Application: HVAC Ducts Product: Bradford Glasswool, Supertel 32kg/m3 with Acoustituff Facing or Heavy Duty Perforated Facing Performance: Sound Attenuation and Thermal Resistance
Application Overview

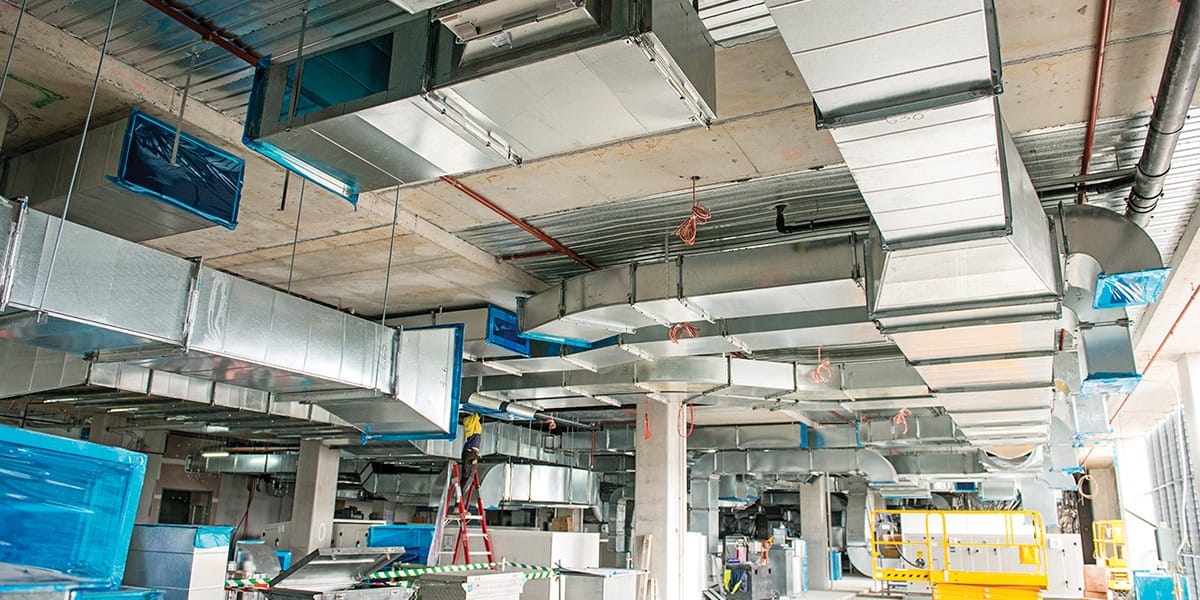

Commercial HVAC (Heating, Ventilation and Air Conditioning) systems are typically driven by large central motors that push conditioned air to each room of a building through a complex network of metal ducts.
It's within these ducts that CSR Bradford provide a high performance insulation solution that ensures the HVAC system achieves the NCC energy efficiency targets and delivers thermal and acoustic comfort to building occupants.
Bradford Supertel 32kg/m3 is a high performance insulation that's installed inside HVAC ducts for sound attenuation and thermal resistance. The product can be acoustically tuned with a range of factory applied facing materials such as Acoustituff and Heavy Duty Perforated Foil.
The product reduces noise from the HVAC motors travelling though the ducts into the rooms while it's thermal performance helps maintain a consistent air temperature throughout the long network of ducts.

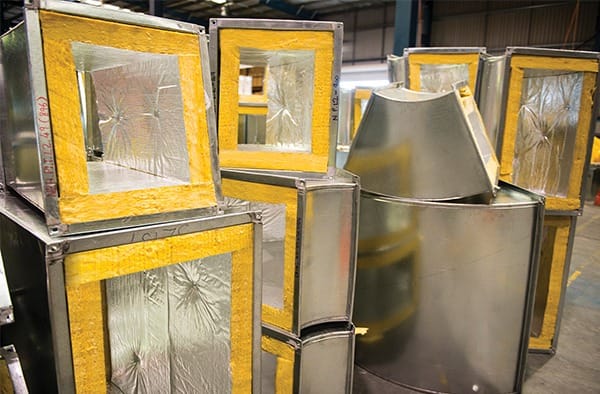

Commercial HVAC ducts are manufactured and insulated offsite by specialised sheet metal fabricators. During the duct manufacturing process, metal pins are welded to each internal face so that the insulation can be impaled and positioned as a continuous internal lining. Metal clips secure the insulation in place and metal angles or foil HVAC tape are installed to complete corners and edges.
Thermal Performance
The Bradford Glasswool insulation range is often the first choice for HVAC system designers. The extensive range provides solutions for HVAC Duct Lining, HVAC Duct Lagging and HVAC Silencers. In this Case Study the featured product is Bradford Supertel (32kg/m3) and is available in the following thicknesses and R-Values:
| Supertel Thickness | 13mm | 25mm | 40mm | 50mm | 75mm | 100mm |
|---|---|---|---|---|---|---|
| Material R-Value | R0.4 | R0.8 | R1.2 | R1.5 | R2.2 | R3.0 |
Acoustic Performance

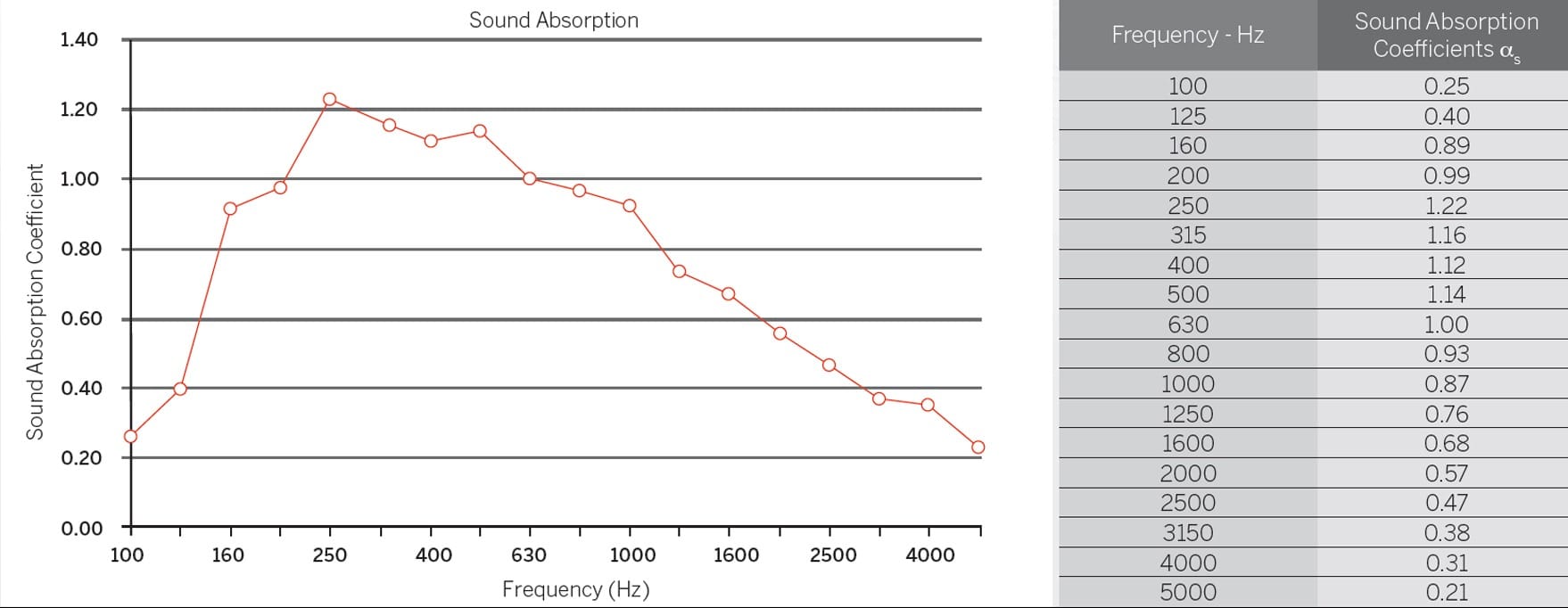

Acoustituff Facing with; Bradford Supertel 32kg/m3 75mm
Acoustituff facing provides a sealed face to the insulation material, separating it from contaminates found in some ducted air streams. Its light weight construction allows low to mid frequency to pass through it into the insulation.
Heavy Duty Perforated Facing
Heavy Duty Perforated Facing with; Bradford Supertel 32kg/m3 75mm
The Heavy Duty Perforated facing protects the insulation material whilst maintaining the sound absorptive properties of the insulation. Its perforated construction allows a broad range of frequencies to pass through it into the insulation.
Bradford Glasswool Manufacturing
Bradford manufactures to strict product tolerances and provides the most comprehensive warranty in the market and is backed by CSR, Australia's oldest and most trusted building products manufacturer.
Technical Project Support
The Bradford team has a wealth of construction experience and utilise industry-leading building science research for acoustic, thermal and fire insulation products. As the experts in building insulation they can assist with:
- project-specific support
- value engineering challenges
- specification documentation
- system design detailing
- product installation and certification
Call the Bradford team on 1800 354 044.
