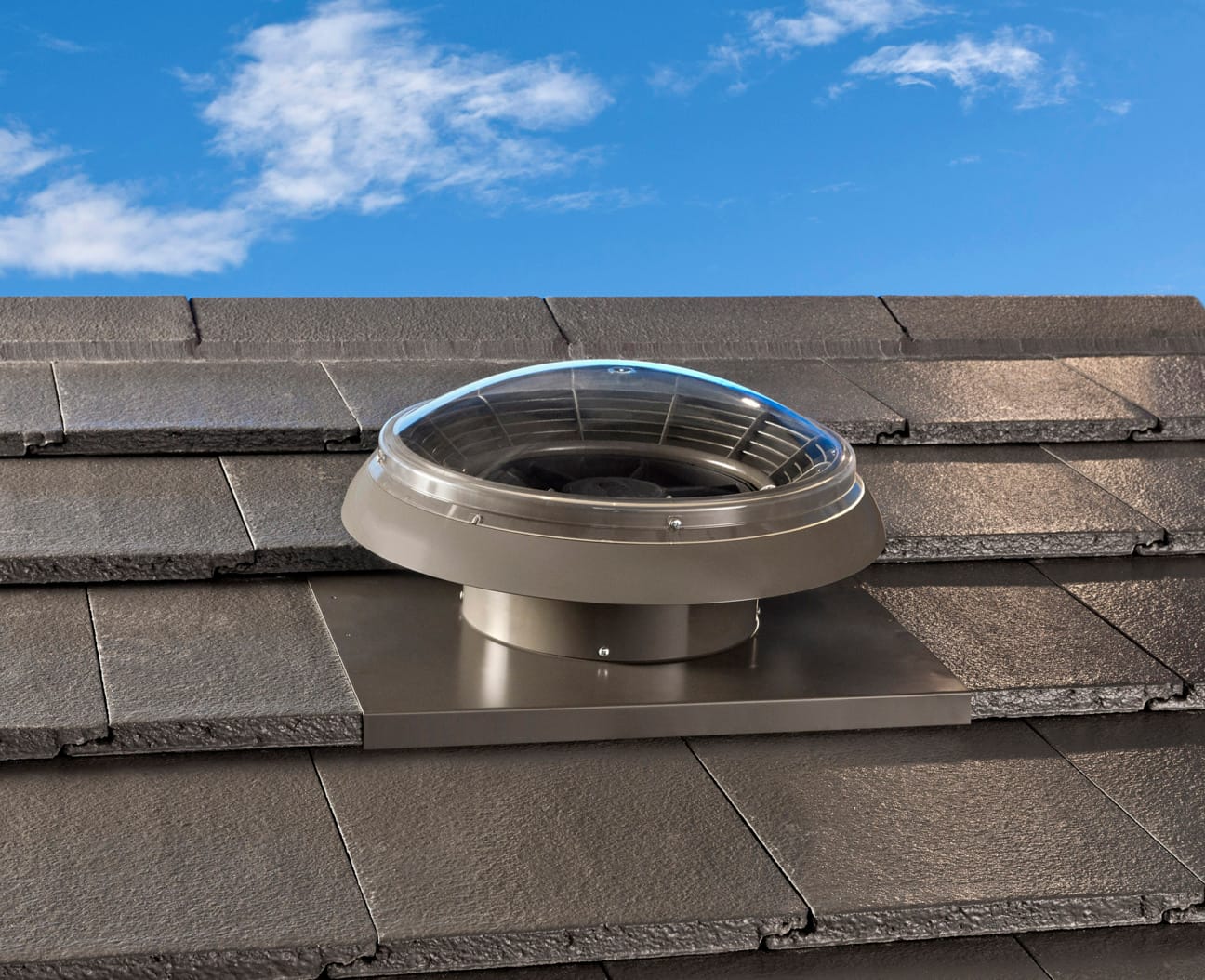

Bradford AiroMatic™ Residential Roof Ventilator
Bradford AiroMatic is a smart powered roof ventilator that automatically detects and removes air from the roof space to help reduce heat load in warm months and reduce condensation in the roof space in cool months. By lowering roof-space temperatures and extracting damp air that can lead to condensation and mould, it supports energy savings and helps protect roof structures over time. AiroMatic is suitable for metal and tiled roofs, and is available in four popular colours.
.png&w=3840&q=80&dpl=dpl_BDXpcv9V3Jak3zhQ9VTM9WQupyvo)
Features and Benefits
Bradford AiroMatic delivers reliable, year-round roof-space ventilation without relying on wind. Choose the preset fixed speed for simple, always-on performance, or switch to Air iQ which automatically detects and removes heat and humidity from the roof space. It installs neatly near the ridge, runs quietly on a low-energy motor, and the clear dome admits daylight that can help deter pests.
Key Features
Smart control modes
Offers Air iQ auto mode or fixed speed for continuous ventilation
Heat and moisture management
Helps expel air to reduce heat load and condensation risk in the roof space
Energy efficient
Low-energy motor helps reduce air-conditioning load and running costs
Easy to install
Fits most roofs and sits neatly for a clean, weather-resistant finish
.png&w=3840&q=80&dpl=dpl_BDXpcv9V3Jak3zhQ9VTM9WQupyvo)
Range
AiroMatic is available in popular roofing colours and with automatic or fixed speed modes to suit climate and compliance needs.
| Surfmist® | Headland® | Woodland Grey® | Night Sky® |
The COLORBOND® steel colour swatches and images shown have been reproduced to represent actual product colours as accurately as possible. However, we recommend checking your chosen colour against an actual sample of the product before purchasing as varying light conditions and limitations of the printing process may affect colour tones. COLORBOND®, BlueScope, ® Colour names are registered trademarks of BlueScope Steel Limited.
Technical Specifications
| Colours | Product Code |
| Surfmist® | 112155 |
| Headland® | 112153 |
| Woodland Grey® | 112156 |
| Night Sky® | 112154 |
® Colour names are registered trade marks of BlueScope Steel Limited.
| General | |
| Ventilator type | Powered roof ventilator |
| Fan diameter | 230 mm |
| Minimum throat diameter | 250 mm |
| NCC Ventilation Openings | NCC ventilation opening compliance requirements for Climate Zones 6, 7 and 8 are addressed by a Performance Solution, as detailed in the ‘Compliance with the NCC’ and ‘Evidence of Suitability’ sections above. The Performance Solution equates the NCC specified open area with a tested flow rate at a fixed speed for powered ventilators. |
| Product weight | 2.95 kg |
| Packaged weight | 3.70 kg |
| Roof Slope Installation Range | Tiled Roofs 15° to 35° Metal Sheet Roofs 3° to 35° Note: Where applicable all roof pitches must comply to AS1562.1, the NCC & Australian Standards weatherproofing requirements within the ranges above. |
| Electrical | |
| Power supply type | Electronic switch-mode |
| Input voltage | 100–240 VAC, ~50/60 Hz, 1 A |
| Output voltage | 24 V DC |
| Cable length | ~1.8 m |
| Installation location | Indoor, dry area |
| Motor type | Electronic commutating motor |
| Internal voltage | 24 V DC |
| Protection class | IP54 |
| Maximum flow rate | 647 m³/hr at 0Pa |
| Material | |
| Clear dome | UV-stable clear acrylic |
| Housing | Weatherproof acrylic |
| Flashing | Aluminium |
| Fan & motor housing | Polypropylene |
| Fan impeller | Glass-filled nylon |
| Fixings | Stainless steel & galvanised |
