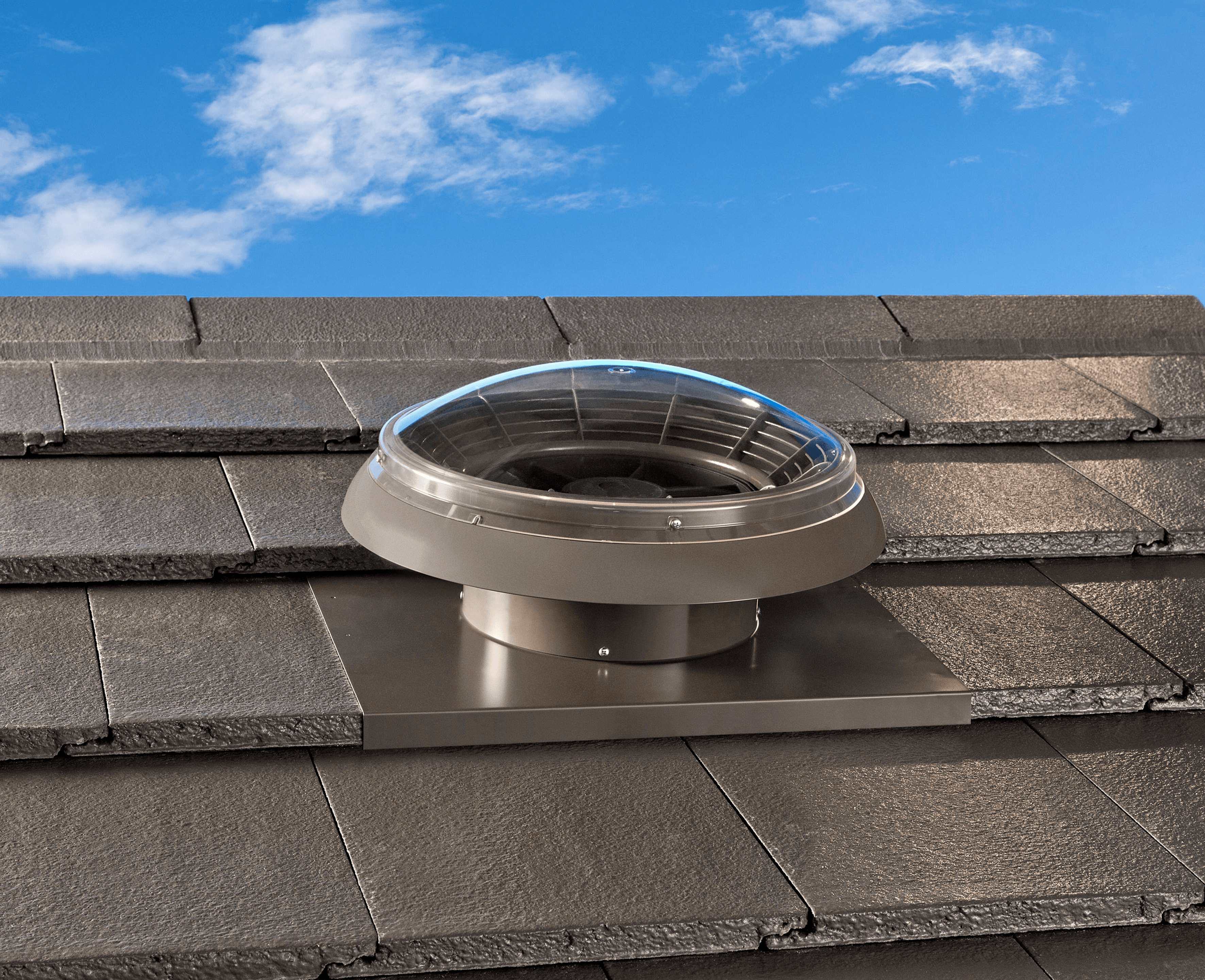

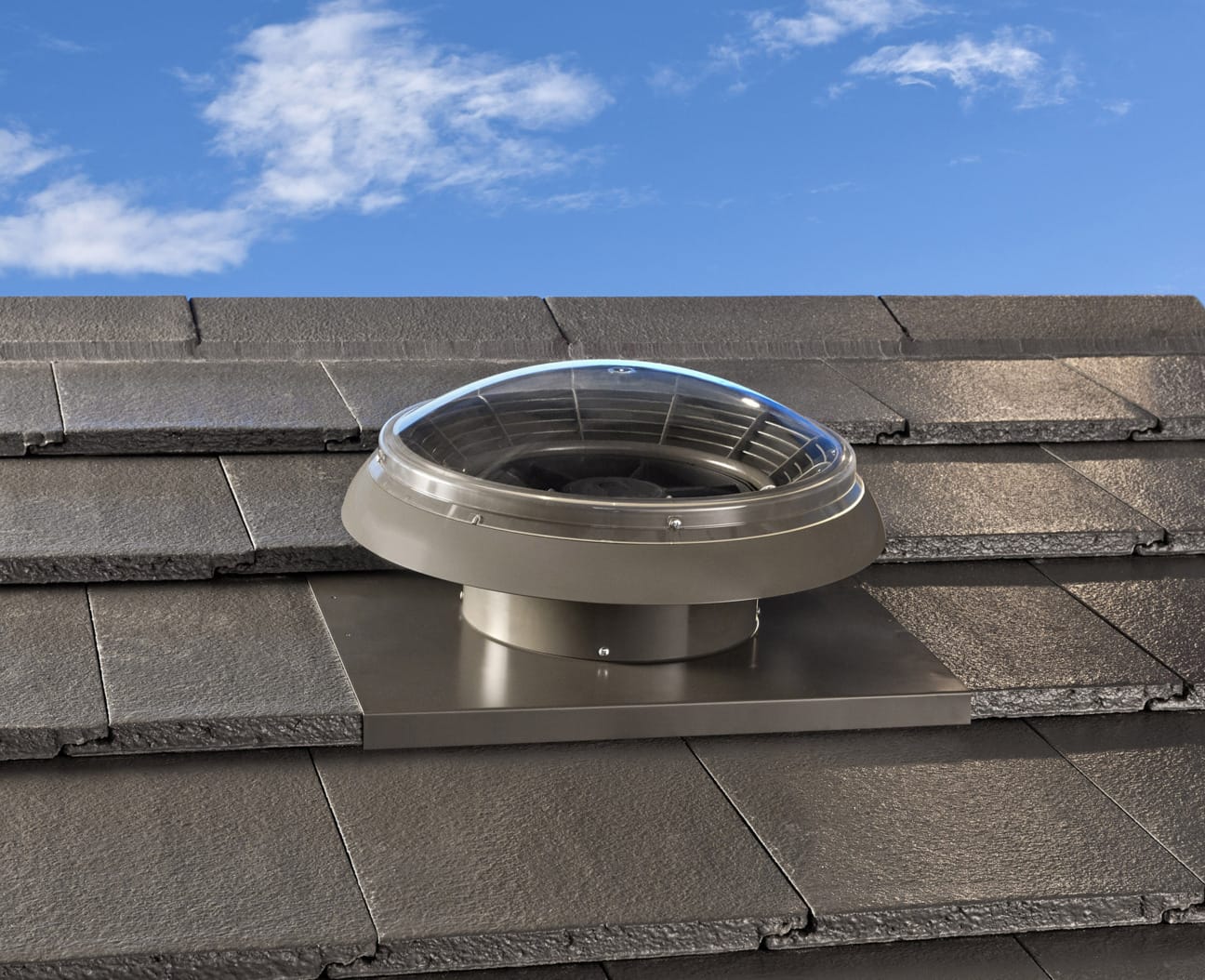

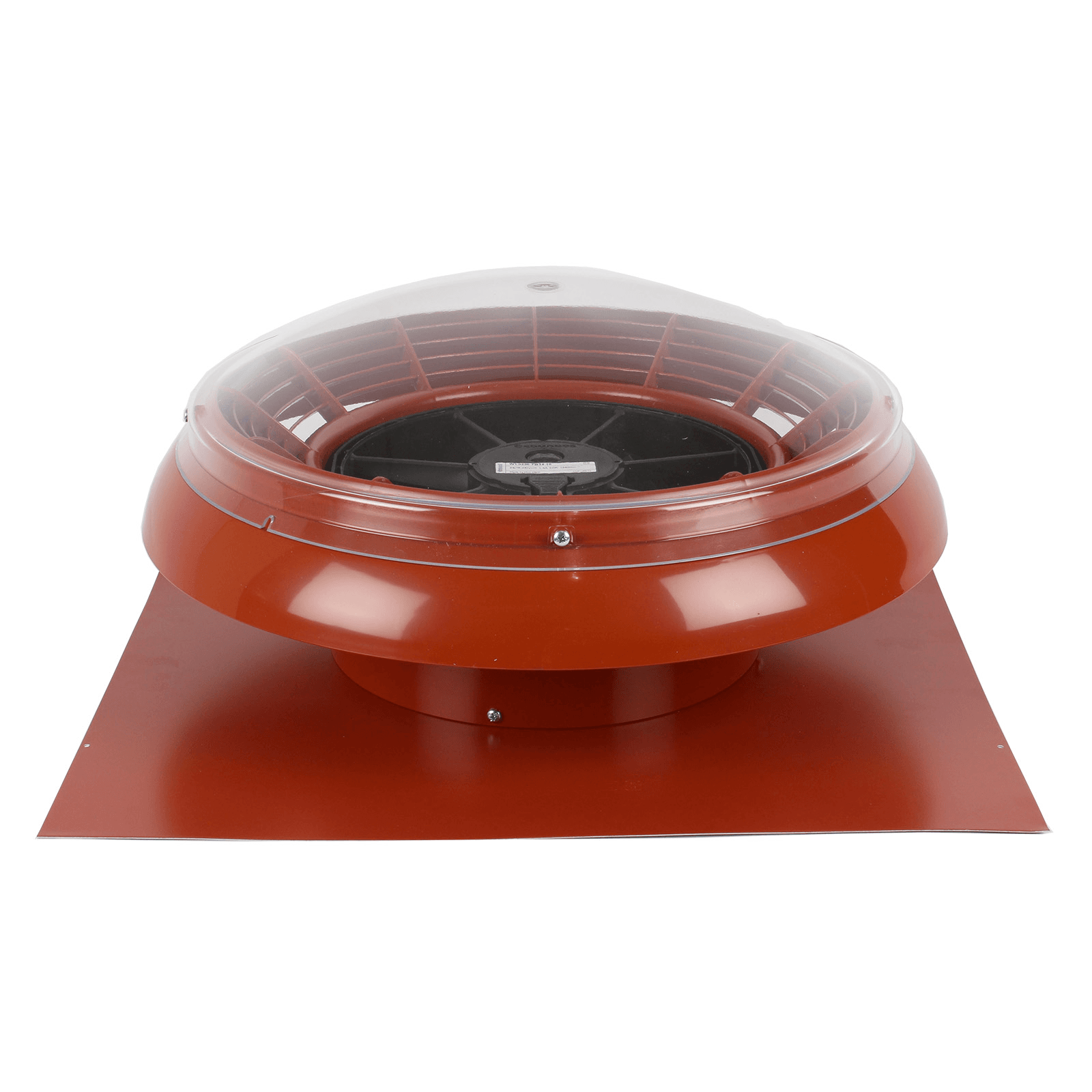

Bradford AiroMatic™ Continuous Flow (CF) Residential Roof Ventilator
Bradford AiroMatic CF is a powered roof ventilator designed to continuously extract air from your roof space, helping to reduce heat build-up during warmer months and reduce condensation during cooler periods. By lowering roof-space temperatures AiroMatic supports energy efficiency and helps protect your roof structure from potential damage caused by mould and dampness. Suitable for both metal and tiled roofs, AiroMatic CF is available in five popular colours to complement your home’s exterior.
Features and Benefits
Bradford AiroMatic CF provides consistent, year-round roof-space ventilation without relying on wind. Its fixed-speed, always-on operation actively removes heat and humidity from the roof space, helping to improve indoor comfort and reduce the risk of condensation-related issues. Designed for discreet installation near the roof ridge, AiroMatic CF runs on a low-energy motor and features a clear dome that allows natural daylight in - an added benefit that may help deter pests.
Key Features
Powerful performance
fixed speed for continuous ventilation
Heat and moisture management
Helps expel air to reduce heat load and condensation risk in the roof space
Energy efficient
Low-energy motor helps reduce air-conditioning load and running costs
Easy to install
Fits most roofs and sits neatly for a clean, weather-resistant finish
.png&w=3840&q=80&dpl=dpl_2zX3FeKFDvwQFcfMdpcpTV6ruL43)
Range
AiroMatic is available in popular roofing colours and fixed speed modes to suit climate and compliance needs.
| Surfmist® | Headland® | Woodland Grey® | Night Sky® |
The COLORBOND® steel colour swatches and images shown have been reproduced to represent actual product colours as accurately as possible. However, we recommend checking your chosen colour against an actual sample of the product before purchasing as varying light conditions and limitations of the printing process may affect colour tones. COLORBOND®, BlueScope, ® Colour names are registered trademarks of BlueScope Steel Limited.
Technical Specifications
| Colours | Product Code |
| Surfmist® | 489173 |
| Headland® | 489171 |
| Woodland Grey® | 489174 |
| Night Sky® | 489172 |
| Monument® | 489670 |
® Colour names are registered trade marks of BlueScope Steel Limited.
| General | |
| Ventilator type | Powered roof ventilator |
| Fan diameter | 230 mm |
| Minimum throat diameter | 250 mm |
| NCC Ventilation Openings | NCC ventilation opening compliance requirements for Climate Zones 6, 7 and 8 are addressed by a Performance Solution, as detailed in the ‘Compliance with the NCC’ and ‘Evidence of Suitability’ sections above. The Performance Solution equates the NCC specified open area with a tested flow rate at a fixed speed for powered ventilators. |
| Product weight | 3.0 kg |
| Packaged weight | 3.65 kg |
| Roof Slope Installation Range | Tiled Roofs 15° to 35° Metal Sheet Roofs 3° to 35° Note: Where applicable all roof pitches must comply to AS1562.1, the NCC & Australian Standards weatherproofing requirements within the ranges above. |
| Electrical | |
| Power supply type | Electronic Switch Mode |
| Input voltage | 100–240 VAC, 1 A, ~50/60 Hz |
| Output voltage | 24 VDC |
| Cable length | Approx. 1.8 m |
| Installation location | Indoor, Dry Area |
| Motor type | Electronic Commutating Motor |
| Internal voltage | 24 VDC |
| Protection class | IP54 |
| Maximum flow rate | 360 m³/hr at 0Pa |
| Material | |
| Clear dome | UV-stable Clear Acrylic |
| Housing | Weatherproof Acrylic |
| Flashing | Aluminium |
| Fan & motor housing | Polypropylene |
| Fan impeller | Glass-Filled Nylon |
| Fixings | Stainless Steel & Galvanised |
