Case study
Location: Melbourne, VIC Builder: Icon Construction Architect: Bird De La Coeur Architects Year: 2011

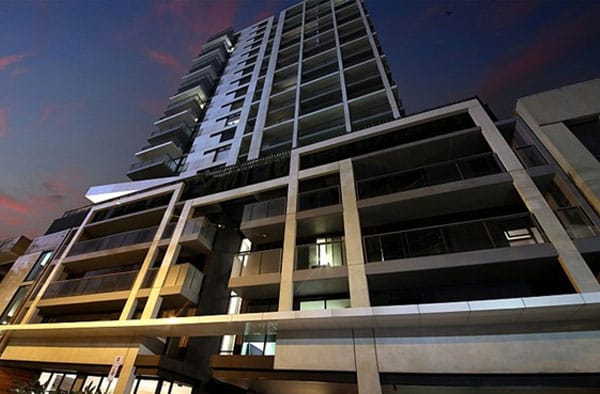

Developed in 2011, it is located 400m from the Yarra River and South Yarra's busy shopping and cafe strip and was awarded the Urban Development Institute of Australia (UDIA) High Density Award in 2012.
Featuring Bradford's high performance double metal stud Party Wall System 216, this separated stud wall system achieves an Rw/Rw+Ctr of 55/50 to ensure minimal noise transmission between units.
The wall cavity infill is comprised of Bradford FBS-1 Bio-Soluble safe to handle Glasswool insulation manufactured in Australia for the Australian climate.

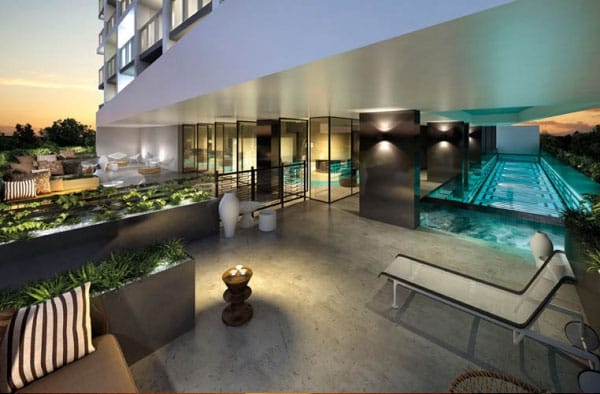

The development has a total of 166 apartments, which include one or two bedrooms, as well as two larger combined apartments, a ground floor lobby and a communal winter lounge and summer deck on level 5.
The shared facilities exceed expectations in regards to services and amenities. A high level of design integrity has been maintained throughout the development, from the sculptural stone of the entry to the highly graphic tiling to the pool.
For this particular system, the insulation was used in the following configuration: one layer of 165mm and one layer of 50mm Bradford Glasswool 11kg/m3 Partition batts.
Whilst every precaution has been taken to ensure that the content in this case study is both current and accurate at time of publication, CSR is not responsible or liable for any errors, omissions or for any consequences arising from the use of this case study.
The information in the case study is general in nature and has solely been prepared for marketing purposes and should not be interpreted as specific advice for a project or product application.
In all cases, the reader should seek professional, project specific advice prior to making design or product decisions.
