Features and Benefits

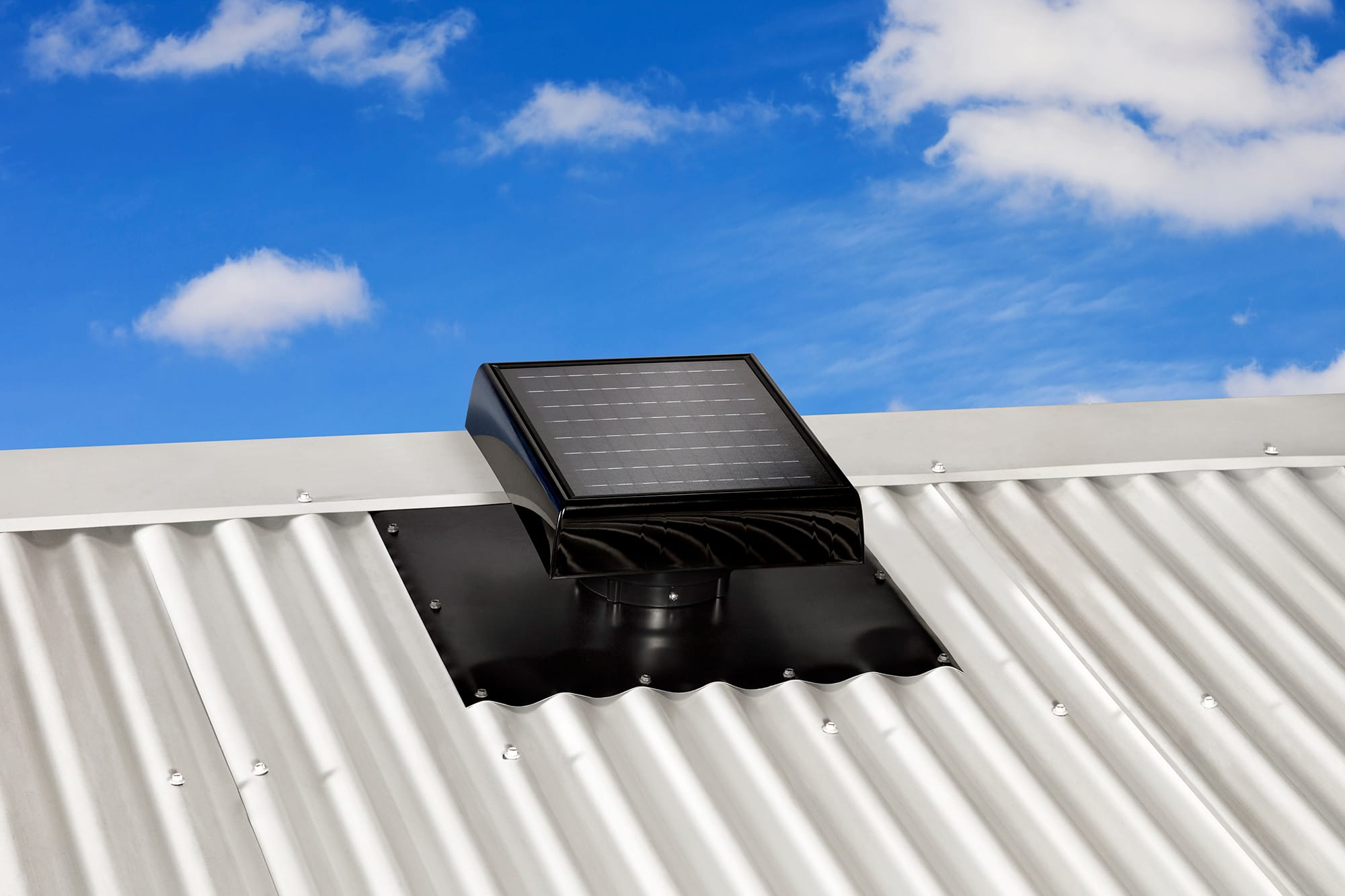

Bradford SolarXVENT has a 10W solar panel and a 7-blade axial fan with a brushless motor, operating without the need for wind or mains power. It installs neatly on tiled or metal roofs and starts automatically in sunlight, delivering simple, targeted ventilation for smaller roof spaces.
Key Features
Solar powered
Runs on sunlight with no mains electricity or running costs
Heat and moisture management
Helps expel air to reduce heat load and condensation risk
Energy efficient
Reduces the burden on air conditioning for potential energy savings
Easy to install
Low-profile, UV-resistant design fits most tiled and metal roofs for a neat finish
Range
| Night Sky® |
The COLORBOND® steel colour swatches and images shown in this brochure have been reproduced to represent actual product colours as accurately as possible. However, we recommend checking your chosen colour against an actual sample of the product before purchasing as varying light conditions and limitations of the printing process may affect colour tones. COLORBOND®, BlueScope, ® Colour names are registered trademarks of BlueScope Steel Limited.
Technical Specifications
|
General |
|
|
Ventilator type |
Solar powered roof ventilator |
|
Fan diameter |
120 mm |
|
Flashing Opening Diameter |
150 mm |
|
Product weight |
2.5 kg |
|
Packaged weight |
3.7 kg |
|
Roof Slope Installation Range |
Tiled Roofs 15° to 35° Metal Sheet Roofs 3° to 35° Note: Where applicable all roof pitches must comply to AS1562.1, the NCC & Australian Standards weatherproofing requirements within the ranges above. |
|
Electrical |
|
|
Solar panel type |
Polycrystalline solar panel |
|
Solar panel output voltage |
18V - Max Power 10W |
|
Fan type |
Brushless DC - axial fan |
|
Maximum flow rate |
150m3/mr |
|
Material |
|
|
Housing |
Weatherproof Acrylic |
|
Flashing |
Aluminium |
|
Screws |
Stainless steel & galvanised |
| Colour | Product Code |
| Night Sky® | 187002 |
Performance Guaranteed
Australian Made
Licensed by Australian Made Campaign Limited to use the Australian Made logo.
Bradford 90 Years
Bradford has been trusted for over 90 years, with products engineered to deliver superior performance in insulation and ventilation systems.
ISO 9001
Meets the ISO 9001 standards for quality management through independent verification.
